Corrugated Roof Panel Roofing Sheet Roll Forming Machine Wall Panel Roof Tile Making Machine

Basic Info

Model NO.	836
Material Width	1000/1200mm
Control System	by PLC
Color of Machine	Blue or as Your Request
Driving of Machine	by Chain with Motor
Main Power of Motor	5.5kw
Brand of Motor	Siemens
Sizes of Chain	1.5inch
Diameter of Shaft	80mm
Guarantee	2 Years
Cutting System	by Hydraulic Pump
Application	Building, Housing, Workshop
Voltage	220V, 50Hz or as Your Request
Name	Corrugated Sheet Roll Forming Machine
Brand of Speed Controller	Mitsubishi
Transport Package	According to Customers′ Request
Specification	836 corrugated
Trademark	JCX
Origin	China Hebei
HS Code	845221000
Production Capacity	40sets Per Month

Product Description

Corrugated profile sheet machine-roll forming machine

specialized manfacturer of roll forming machine,different designs can be customized as your request.Different length can be done,with PLC and speed controller,

product description

Metal Roofing Panel Roll Forming Machine-Roof Sheet Forming Machine

Name	Glazed tile IBR roofing sheet Double layer roof tile making roll forming machine
Suitable Material	PPGI, PI, CR, Q235 Or Equivalent
Control System	Auto Control
Operation Panel	7 Inch Touch Screen
Warranty	18 Months
Life Time	At Least 15 Years
Color	Blue Or At Buyer's Requirement
Certification	CE, ISO
Noice	Environment-friendly, Low Noise
After-sales Service Provided	Engineers Available To Service Machinery Overseas

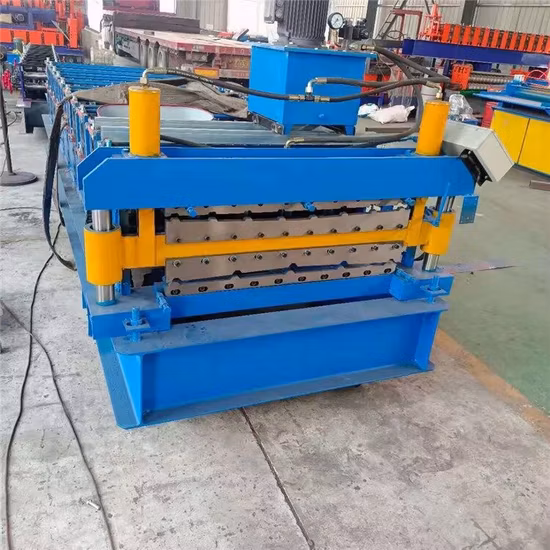

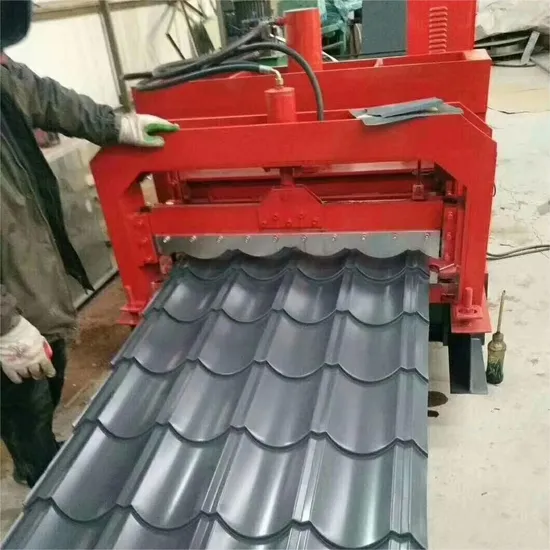

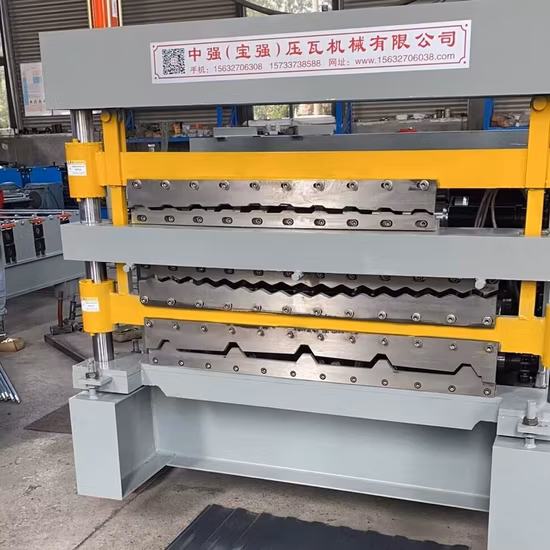

1.Photoes Of Machine

Glazed tile IBR roofing sheet Double layer roof tile making roll forming machine

More Details

Colored Glazed tile IBR roofing sheet Double layer roof tile making roll forming machine

2. Technical Parameters:

Metal Roofing Panel Roll Forming Machine-Roof Sheet Forming Machine

A. General

Glazed tile IBR roofing sheet Double layer roof tile making roll forming machine

Suitable Material	HRB60 or equivalent
Material Thickness	0.2-0.6 mm
Length of the Sheet	You can set the length according to your need. It is controlled by PLC which can ensure the accuracy of ±1mm.
Cutting	Automatically stop and cutting when it comes to the set length.

B. Components Details

Glazed tile IBR roofing sheet Double layer roof tile making roll forming machine

Roller Material	High grade 45# steel. Hard chrome plating, 0.05mm.
Main Frame	350# steel. More stable and no shaking.
Middle Plate	16mm. We use thicker plates to ensure stability of our products.
Forming Steps	11-16, according to the drawing.
Shaft Material	Φ70 mm, high grade 45# steel. Treating process: tempering- finish turning, high rigidity, hard to deform.

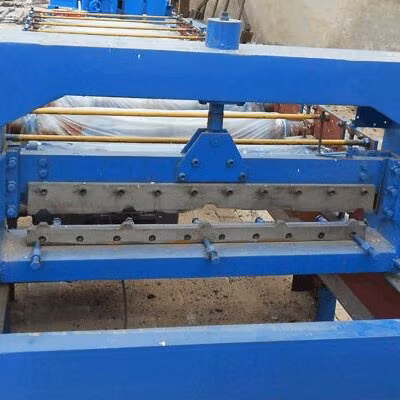

Cutting Blade Material	Cr12, hardness HRC60-62. Treating process: heat treatment- plane abrasion-wire electrode cutting.

c.Component line

Glazed tile IBR roofing sheet Double layer roof tile making roll forming machine

NO	Name	Unit	Qty
1	Man-made decoiler	set	1
2	Main machine for roll forming	set	1
3	Control system	set	1
4	Hydraulic system	set	1

3. Working Flow:

Glazed tile IBR roofing sheet Double layer roof tile making roll forming machine

Loading

Our Advantages
Features of our machine 1)Professional designing for manufactures roofing & walling
2)Automatically continually manufactures high quality product with PLC.
3)Easy operation : Directly input the data on the touchable screen.
4)Customers decide the profile of products.
5)Saving time and cost owing to high speed running with hydraulic system.Company Information

Packaging & Shipping

Package of Glazed tile IBR roofing sheet Double layer roof tile making roll forming machine

1). Container packing of the line suitable for overseas shipping

2). The subjects can be loaded in one 20' container.

3). Package style: Covered by plastic film, spare parts and some small parts packed in carton box.

Certifications



Our Services

A. One-Years product warranty.

B. Training and installation available.

C. The technical support for the whole life.
