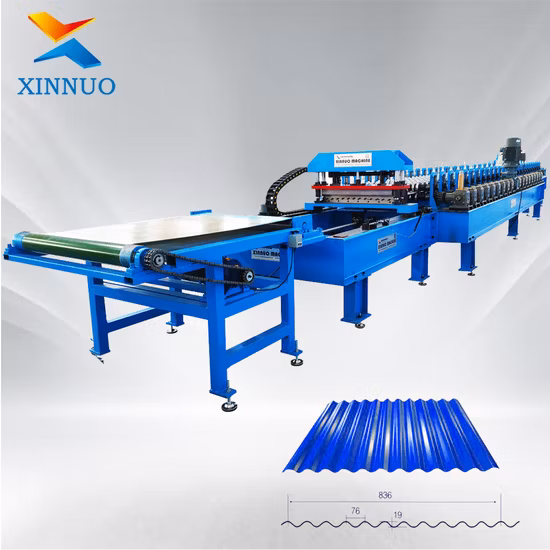

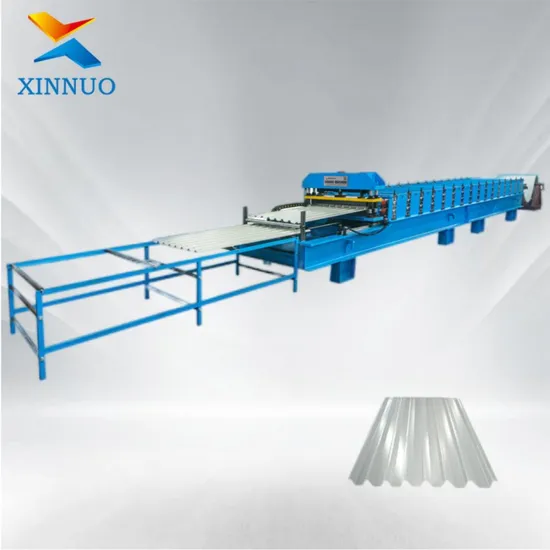

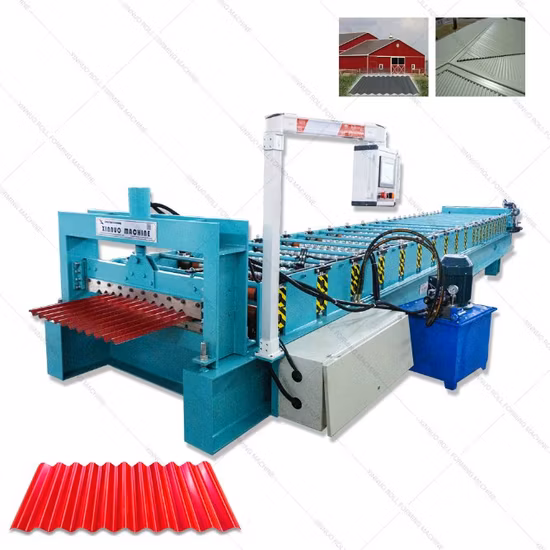

Xn Cold Steel Corrugated Iron Sheet Roofing Tile Making Roll Forming Machine

Basic Info

Model NO.	Corrugated Roll Forming Machine
Power	5.5kw or 11kw
Transport Package	Naked
Specification	780*150*120cm
Trademark	XN
Origin	China
HS Code	8455221000
Production Capacity	2000 Sets/Year

Product Description

XN Cold Steel Corrugated Iron Sheet Roofing Tile Making Forming Machine

Product Description

No.		Main parameter of KEXINDA Cold Steel Corrugated Iron Sheet Roofing Tile Making Forming Machine
1		Suitable to process	Color steel plate
2		Width of the plate	1250mm
3		Rollers	14rows
4		Dimensions	7.8*1.5*1.2m
5		Power	3+3kw
6		Thickness of the plate	0.3-0.8mm
7		Productivity	8-12m/min
8		Diameter of the roller	Φ80mm
9		Weight	About 4.0 T
10		Voltage	380V 50Hz 3phases
11		Rolling material	Carbon Steel 45#
12		Material of the cutting plate	Cr12
13		Processing precision	Within 1.00mm
14		Control system	PLC control
15	Side panel of machine		14mm
16	Main structure of the machine		300 H steel

Our AdvantagesNEW CNC MILLING

It make the backboard of purlin machine, also make the holes on backboard. This milling machine can milling the backboard more level, hole place is more precious. This can make the roller more level after installing,and then the purlin will be more straight.
MACHINING

This line, have high precious CNC grinders and milling machines, to make the rollers and shafts of the machine.After produce, have professional engineer to check if these are qualified.
From one roller to one machine, we do every step carefully to make sure the quality.

Packaging & Shipping

Our roll forming machines are shipped in the whole container: the main machine is packaged with plastic film to prevent the accessories from being damp; the electrical control cabinet is packaged in a fumigation-free wooden box; the vulnerable parts are packaged in a cardboard box and an isolation board. All equipment in the cabinet is fixed with 12mm high-strength steel wire ropes. Ensure that there will be no bumps on the device's journey.

Company Profile

Hebei XN Roll Forming Machine, not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc. Strong technical resources are the most stable guarantee for our products' quality. We adopt computer software for design drawing, production drawing and installation drawing for steel construction equipment. We adopt advanced computer digital inspection and produce high quality light steel structure equipment. Our technical is updating day by day ! Our sales network covers all over China. We also sell products to the United States, Australia, the Netherlands, Germany, Ecuador, Bolivia, Thailand, Malaysia, Indonesia, India, the Philippines, Bangladesh, Nigeria, South Africa, Ethiopia, Syria, Libya, Ghana, Sudan, Saudi Arabia, the United Arab Emirates, Turkey, Azerbaijan and other markets. Our company has matured after-sale service network, we could provide efficient and satisfactory service for you throughout the period of our cooperation.If necessary, we can supply you with local technical support and send technicians to for installation and operation training.



Certifications

FAQ

1.How to play order :

Inquiry---confirm the profile drawings and price---confirm the PI---arrange the deposit or L/C---then OK

2.How to visit our company :

Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi(1 hour),then we can pick up you.

Fly to Shanghai Airport:By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5hours),then we can pick up you.

3.When we exported the machines :

We have beening making and exporting the machines since from the year of 1998.

4.*Guarantee* :

Lifetime maintenance guarantee.If some part of the machine is broken.We will supply the best original parts for the machine from our own factory. If the parts are damaged due to improper operation, buyer will pay for the freight.

5.*After-sales* :

To give you the best after-sales service, the first give you video call with professional technicians , the second we send technicians to your country to repair the machine,The buyer shall bear all expenses, including visa, round-trip airfare and suitable accommodation, and pay the salary of usd 100 / day.

6.Contact us:

If you want to get more pictures or videos of the machines, feel free contact us.We will give you the best experience!



THANK FOR YOUT TIME ! WAITING FOR YOUR MESSAGE !
